Understanding the intermittent bonded ribbon production line
Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. provides equipment for producing rollable formats used in optical-fiber manufacturing. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to assess its capacity against their planned product range. Factory space and installation needs may also be affected by the system’s split-type construction.
Intermittent Bonded Ribbon Production Line Fiber Draw Tower SZ Stranding Line
For this specific production line, the listed construction speed is 600 m/min. Fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up are integrated in the process. The full process is important to evaluate, not just the stated speed.
Factory utilities, reel requirements, available floor space, and installation conditions should be reviewed before purchase. Ask the supplier for its documentation package and check the system’s suitability for your cable design and operating requirements. Addressing these details in advance may reduce setup delays and support a smoother start.
Main Takeaways
- Designed for rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Features a split-type construction.
- Curing, monitoring, pulling, and take-up stages are included.
- Check utilities, reels, installation needs, and supplier documents before buying.

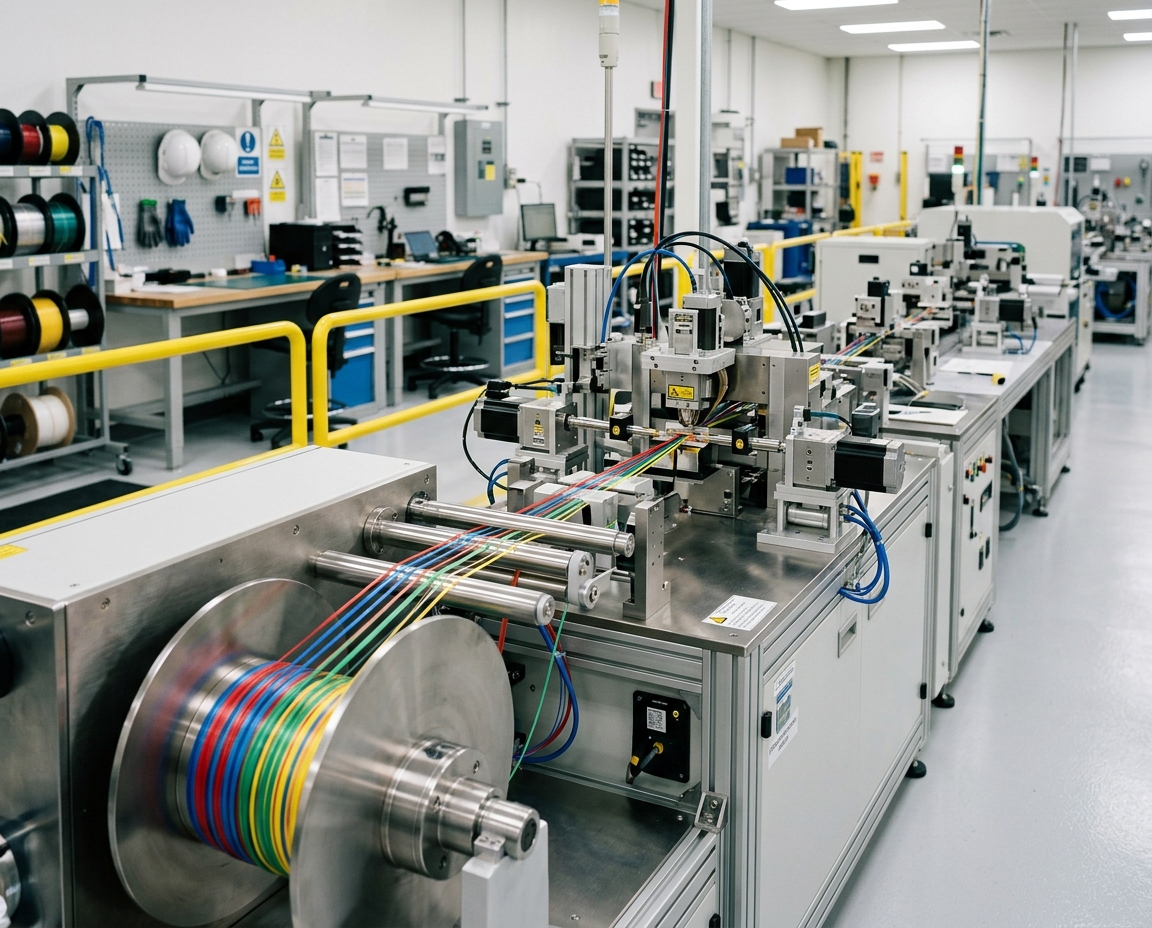

Intermittent Bonded Ribbon Production Line
Examine The Intermittent Bonded Ribbon Production Line
To create rollable IBR formats, three mold groups position fibers for the application of small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping produce consistent spacing and form.
Produce Rollable Fiber Ribbons With Precision Bonding
The machine is supplied by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Steady contact during processing is supported by the rollers’ hard-anodized surfaces. The adjustable valve arrangement supports 12F and 16F layouts, using 5+5+1 valves for 12 fibers or 5+5+5 for 16. Confirm the appropriate tension control settings with the supplier for your cable design.
Support 12- And 16-Fiber Configurations At Speeds Up To 600 m/min
Construction speed is specified at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. The system also provides T-type or fiber-optic take-up reels. Assess whether reel capacity matches your operating needs and anticipated changeover time.
Review The Production Line’s Key Equipment And Controls
Tension, resin placement, and UV exposure must work together to deliver reliable output. Operators can use the system to match settings with the needs of their cable design and fiber ribbon.
Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing
Electro-pneumatic adjustment is provided for each pay-off unit. Dispensers can operate independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Before UV-LED post-curing, three pre-curing ovens serve the mold groups. Ask the supplier to check resin compatibility and the relevant operating conditions.
The Siemens PLC and touchscreen show lamp current and oven temperature, generate alarms, and support preset lengths. Before purchase, verify cabinet requirements and power supply needs.
| Stage | Specification | Buyer check |
| Fiber tension | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Align settings with cable requirements |
| Dispensing of resin | Independent or linked units; set adhesive-dot spacing and count | Check interface configuration |
| Curing With UV-LED | Three 800 W pre-curing ovens; one 6 kW post-curing oven; 395 nm ± 3 nm; at least 85% cure under stable, high-speed conditions | Confirm resin compatibility |
| Monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Prepare Line Configuration, Installation, And Operating Conditions
Before the machine is delivered, prepare a dedicated operating area. The optical fibre system requires an enclosed, clean, dry, and draft-free environment. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. Maintaining these conditions helps preserve equipment protection and operating precision.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. A three-phase, five-wire electrical supply rated 380 V ±10% is required.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, check the temperature settings and tension control.
- Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit supports reels weighing up to 30 kg.
- Account for the main power feed-in cable when planning the site. The equipment package excludes connection cables and cable trays.
Before ordering, verify the supply scope, reel types, and installation requirements. Reviewing these items may reduce setup time and avoid subsequent delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. Clear planning supports a smoother startup for the production system.
Obtain Pricing For A Ribbon Production Solution Matched To Your Needs
Manufacturers seeking rollable 12- or 16-fiber formats can evaluate this line at its stated speed of 600 m/min. When requesting a quote, provide your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Examine the supplied components, dispensing-head options, unit functions, and cable design prior to ordering.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. These documents can help understand setup time and ongoing service needs.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Verify the supply scope and replacement parts before purchase.
